Product center your current location: Home - Product Center

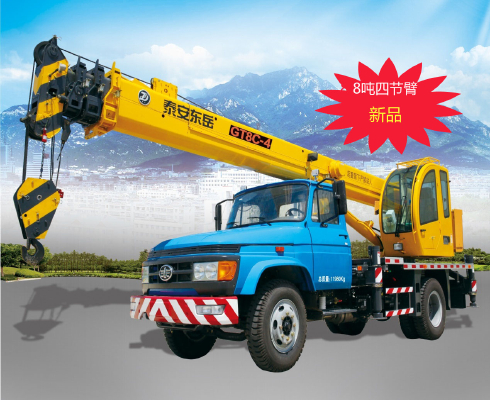

GT8 truck crane (country IV)
GT8 product features:
GT830 uses the FAW engine (BF4M1013-14E4), GT831 uses the Dongfeng engine (YC4E140-42), the two emission all reaches the national standard;
Hydraulic system using 40/40/32 triple pump, two pump for lifting, greatly improve the efficiency of the work;
Using hydraulic driven, light, flexible, flexible, stable and reliable work, can achieve the stepless speed regulation. The hydraulic pipe is connected with the clamping sleeve type to reduce the oil leakage, and the whole operation reliability of the whole machine is high;
And hanging arm parallelogram structure type is a reference the United States grove mature design; a welding molding advanced technology is adopted in welding shall be force is small, high quality, strong resistance to deformation;
Get off the car using electronic throttle control, flexible and reliable operation;
Turn table tail turn small, is conducive to small and narrow space operations;
Rope wedge free disassembly and assembly, can quickly change the wire rope ratio;
The whole platform, Aluminum Alloy edge, convenient walking;
Streamlined car control room, bright and spacious;
- allocation of 12 tons of leg cylinder, the greater stability;
High level limit instrument, electronic said and other safety devices.
- Place of Origin: shandong
- Brand Name: dongyue
- Model Number: GT8C4CT
Maximum weight (T) | 8 | 8 |
Maximum lifting height (m) of the main arm | 18.1 | 18.1 |
The maximum lifting height (m) of the main arm and the auxiliary arm | 23.9 | 23.9 |
Single rope hoisting speed (m/min) | 105 | 105 |
Rotation speed (r/min) | 0-3 | 0-3 |
Maximum speed (km/h) | 74 | 85 |
Maximum climb (%) | 24 | 28 |
Leg span (longitudinal lateral x) (m) | 3.9×4.2 | 3.9×4.2 |
Total mass (kg) | 11015 | 10445 |
Engine rated power (kw/rpm) | 106/2500 | 103/2500 |
Model | GT830 | GT831 |
