- Place of Origin: shandong
- Brand Name: dongyue
- Model Number: GT10

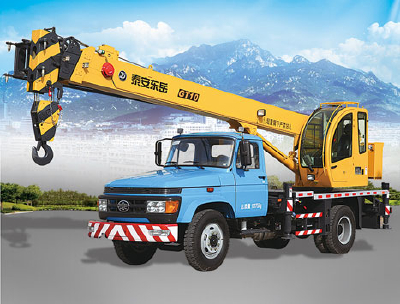

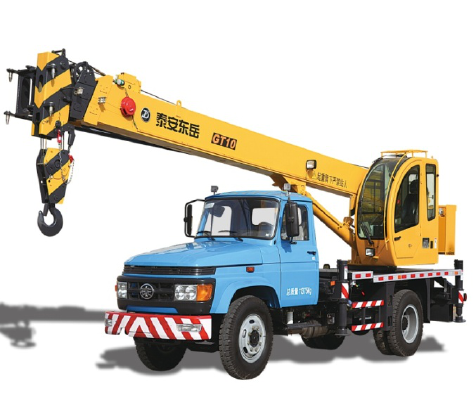

GT10 product features:
Using FAW engine BF4M1013-14E4, emissions to reach the national standard;
Hydraulic system using 40/40/32 triple pump, two pump for lifting, greatly improve the efficiency of the work;
Using hydraulic driven, flexible control, flexible, stable and reliable work, can be continuously variable speed. Hydraulic pipeline using the card sleeve type connection, reduce the oil leakage, improve the work reliability of the whole machine;
And main arm parallelogram structure type is reference the United States grove mature design; a welding molding advanced technology is adopted in welding shall be force is small, high quality, strong resistance to deformation;
Get off the car using electronic throttle control, flexible and reliable operation;
Turn table tail turn small, is conducive to small and narrow space operations;
The use of human and machine engineering, streamline control room, large arc shape, beautiful appearance, spacious and bright, wide field of vision;
- allocation of 12 tons of leg cylinder, the greater stability;
The whole platform, Aluminum Alloy edge, convenient walking;
Rope wedge free disassembly and assembly can quickly change the ratio of wire rope;
High level limit instrument, electronic said and other safety devices.
- Place of Origin: shandong
- Brand Name: dongyue
- Model Number: GT10
| Model | GT1031 |
| Maximum weight (T) | Ten |
| Maximum lifting height (m) of the main arm | Nineteen point nine |
| The maximum lifting height (m) of the main arm and the auxiliary arm | Twenty-five point eight |
| Single rope hoisting speed (m/min) | One hundred and five |
| Rotation speed (r/min) | 0-3 |
| Maximum speed (km/h) | Seventy-four |
| Maximum climb (%) | Twenty-four |
| Leg span (longitudinal lateral x) (m) | 3.9×4.2 |
| Total mass (kg) | Eleven thousand three hundred and seventy-five |
| Engine rated power (kw/rpm) | 106/2500 |
