- Place of Origin: shandong
- Brand Name: dongyue
- Model Number: GT12C4C

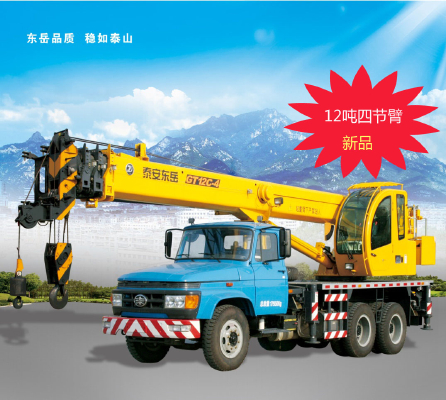

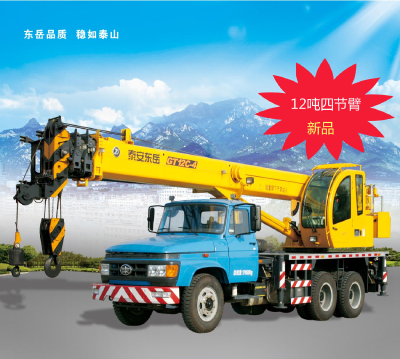

· GT12C4C use chassis of China faw general CA5206JQZ, faw engine (BF6M2012-18 e4), emissions of the Ⅳ standards.
Hexagon boom, four main arm, high strength steel welding forming, adopting has advantages of high strength, good stability and high reliability. Maximum lifting torque, up to 495 kn · M.
, the machine's hoisting, luffing and slewing, telescopic crane boom, leg and etc, are all made of hydraulic pressure drive, has the manipulation of light, flexible, stable and reliable can be stepless speed regulation, etc. Double lifting mechanism, the convenient user use.
, get in the car electronic accelerator pedal device for the throttle, easy operation.
Sanlian pump system, hydraulic system, which can realize two pump confluence for hoisting, luffing, telescopic homework, is equipped with all kinds of balance valve, relief valve, valve, such as relief valve, to prevent oil overload and pipeline rupture caused by accident, make sure that the actuators work safe and reliable.
, hydraulic line USES the card sleeve connection, reduce the oil spill, enhance the working reliability.
, this product is equipped with a torque limiter, the wire rope hoist limiter and other safety devices to ensure the safety of lifting operation; Has the complete lighting system, safe, convenient and reliable operation.
- Place of Origin: shandong
- Brand Name: dongyue
- Model Number: GT12C4C
| model | GT12C4C |
| Maximum lifting weight (t) | 12 |
| The main arm maximum lifting height (m) | 27 |
| Main arm jib maximum lifting height (m) | 34 |
| Single rope hoisting speed (m/min) | 120 |
| Turning speed (r/min) | 3 |
| Top speed (km/h) | 74 |
Maximum gradability (%) | 28 |
| Leg span (vertical (horizontal) (m) | 4.47 x 4.9 |
| Total mass (kg) | 17950 |
